Tela de 10,4 Polegadas
Modelo: DMG10768C104_03W(Grade Comercial)
Features:

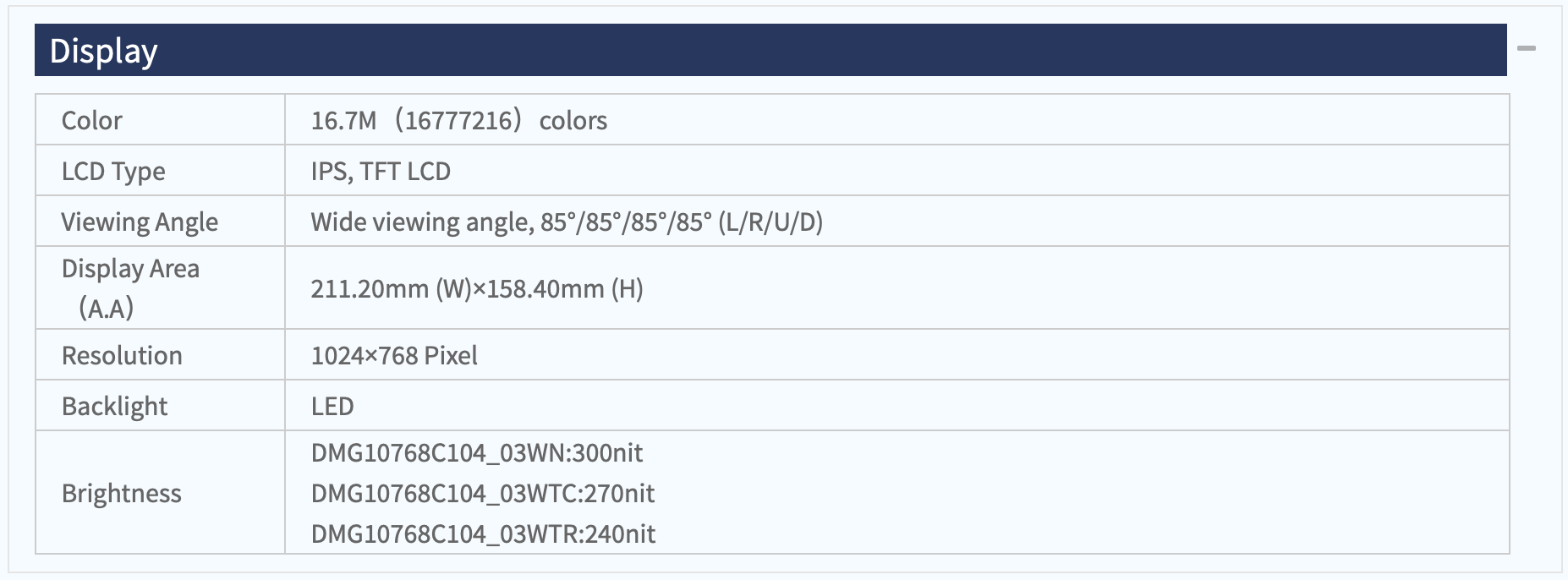

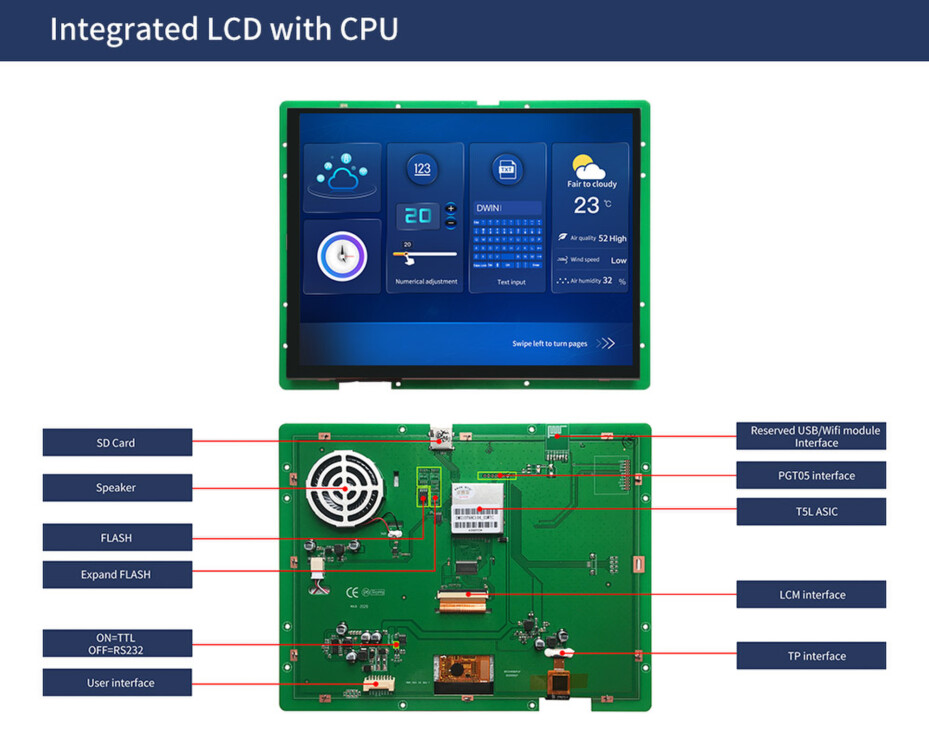

● Based on T5L ASIC 10.4 Inch,1024xRGBx768,16.7M Colors, IPS screen;

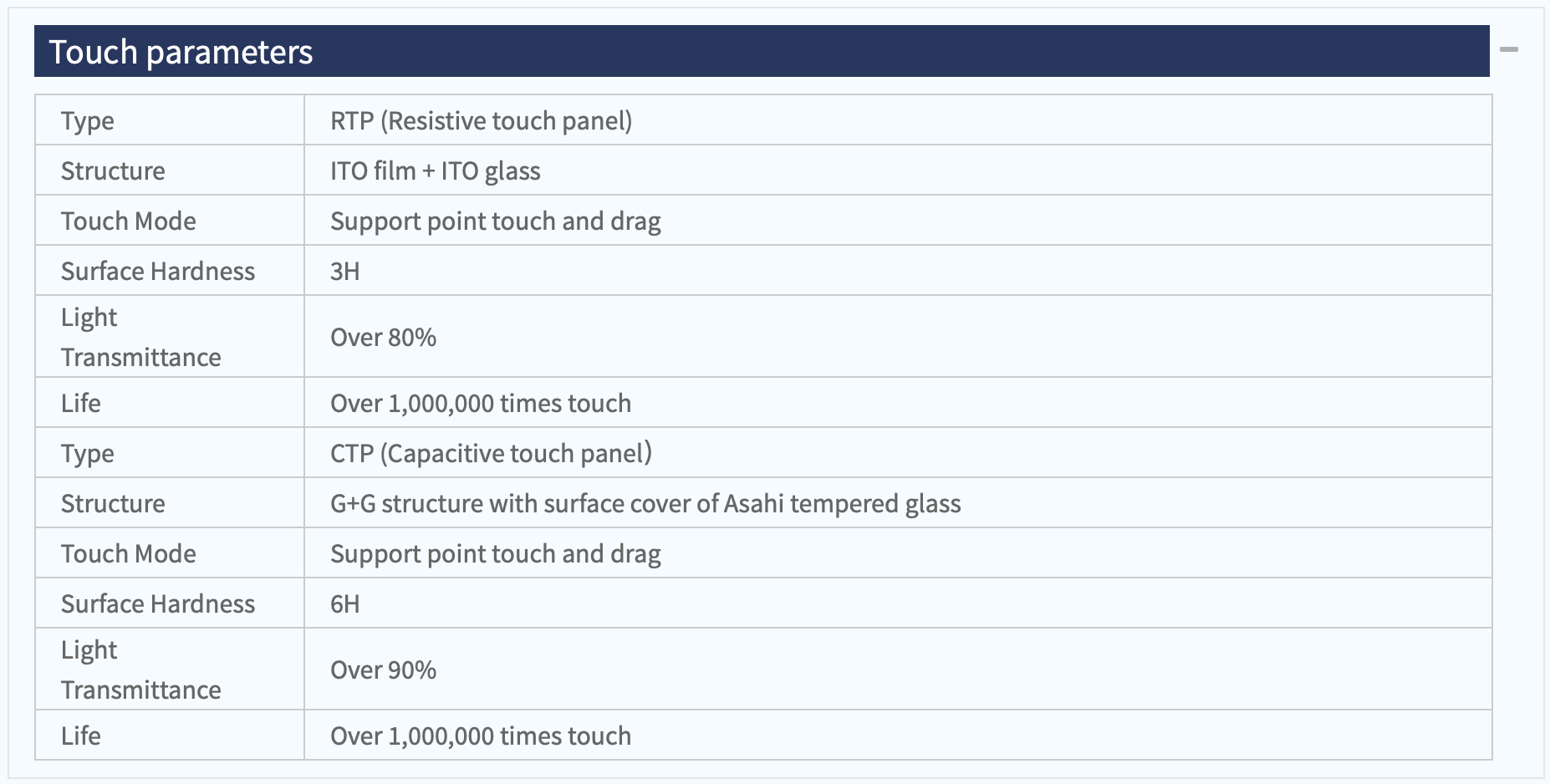

● No touch display/Resistive touch screen/Capacitive touch screen Optional;

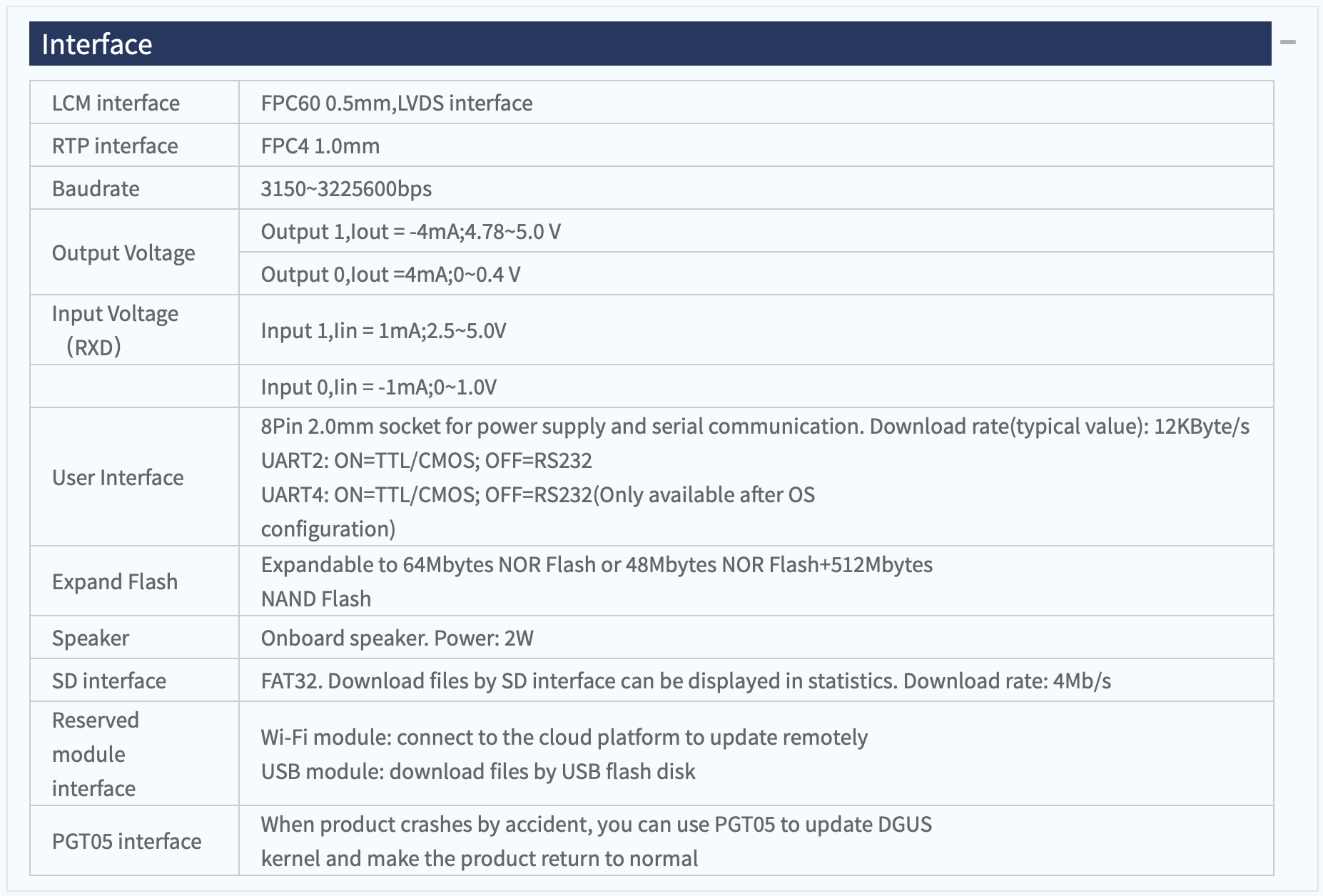

● TTL/RS232 interface; 8Pin_2.0mm connection wire;
● Support 90 degrees, 180 degrees, 270 degrees  rotation;
● DGUS V7.624 GUI tool,make your design easier ;
● DGUSⅡ/TA(Command) development models ;
● IPS View Angle:85/85/85/85(L/R/U/D);
● Dual core ,GUI for zero code GUI design , OS for the second time development .
