Tela de 10,1 Polegadas
Modelo: DMG10600T101_A5W (Classe Industrial)
Features:

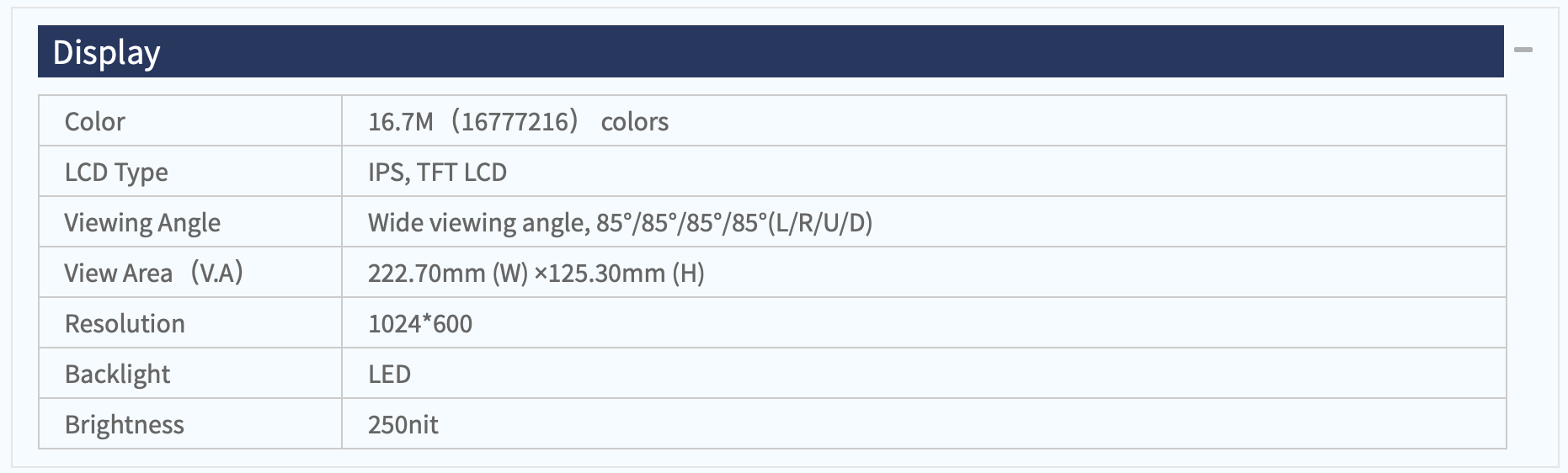

● Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 1024*600 Pixel;
● 72 Hours Aging Test, With conformal Coating,IP65 Protective Level;

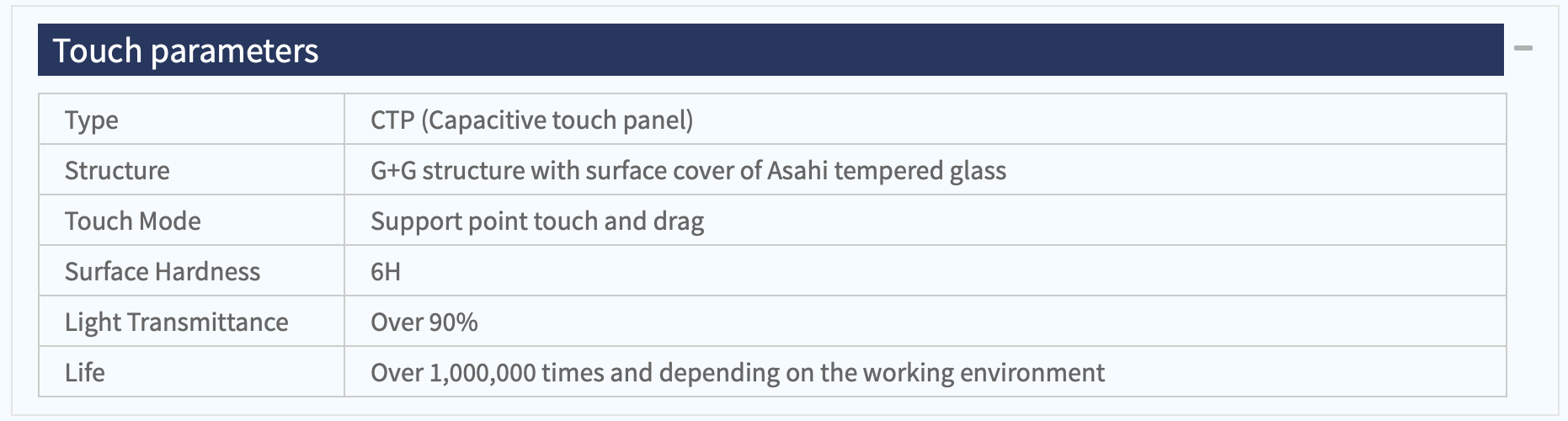

● Capacitive touch screen;

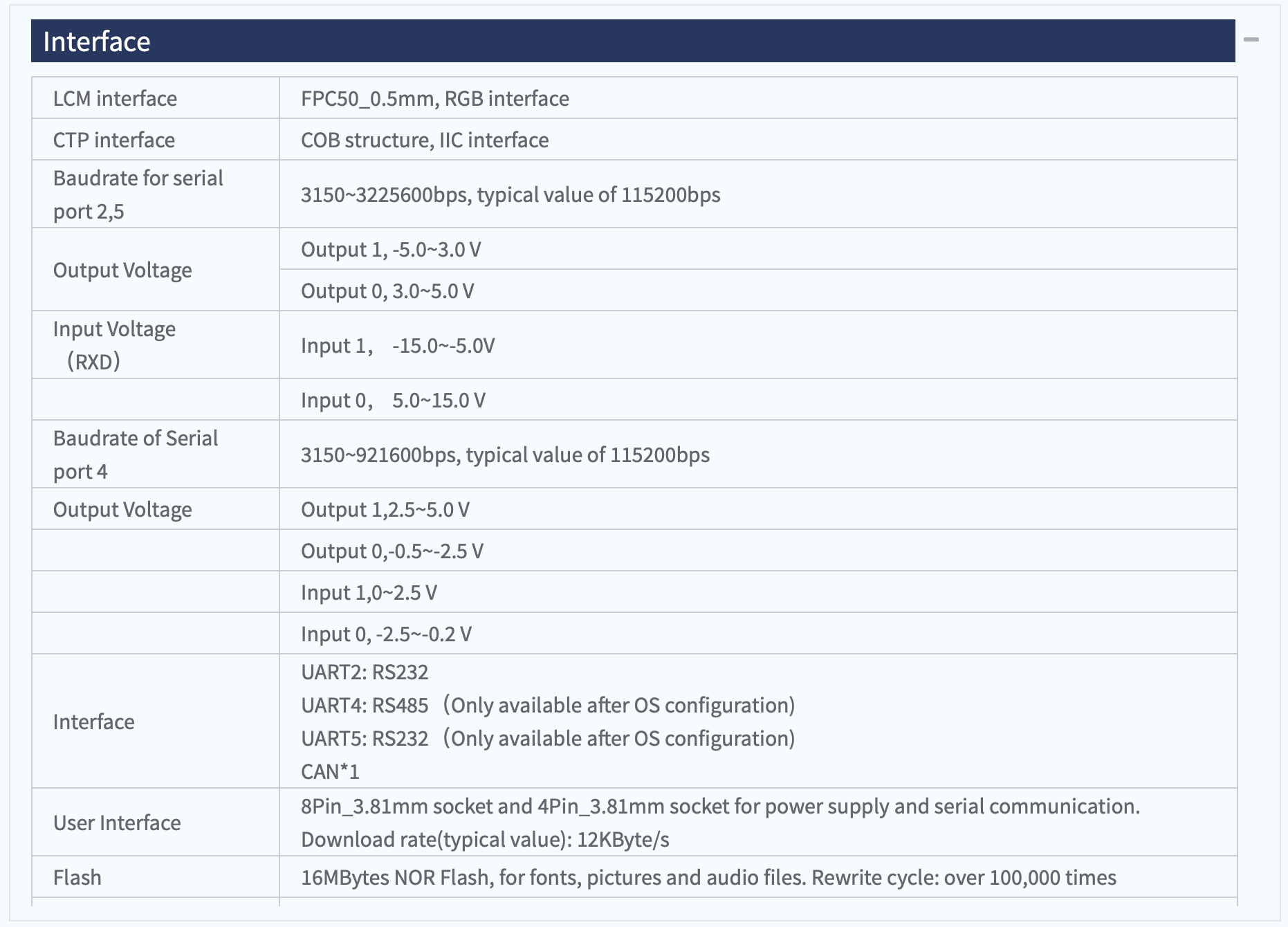

● RS232 and RS485 Interface,8PIN 3.81 Socket;
● Widely used with different kinds of PLC;
● Adopt DWIN V7.624 DGUS tool;
● Dual Development System: DGUS II/ TA(Instruction set);
● IPS View Angle: 85°/85°/85°/85° (L/R/U/D) ;

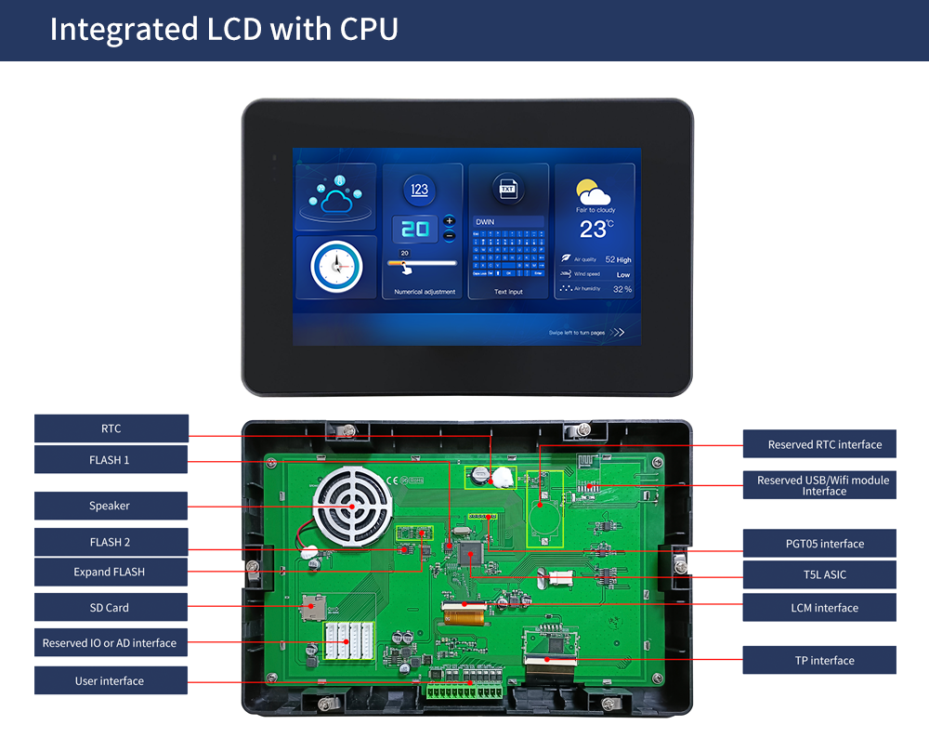

● Independent GUI and OS CPU.OS CPU can be development by DWIN OS and KeilC.
